KV8 Subaru WRX/STI "Level 2" Plug and Play Package

Introducing our EMtron KV8 Subaru Level 1 Plug and Play kits, designed to get you up and running a fast as possible on one of the best ECUs in the market. With the expanded IO Availability with EMtron KV, we include TMF Inputs by default, as well as Oil Temp and Pressure harnesses and sensors.

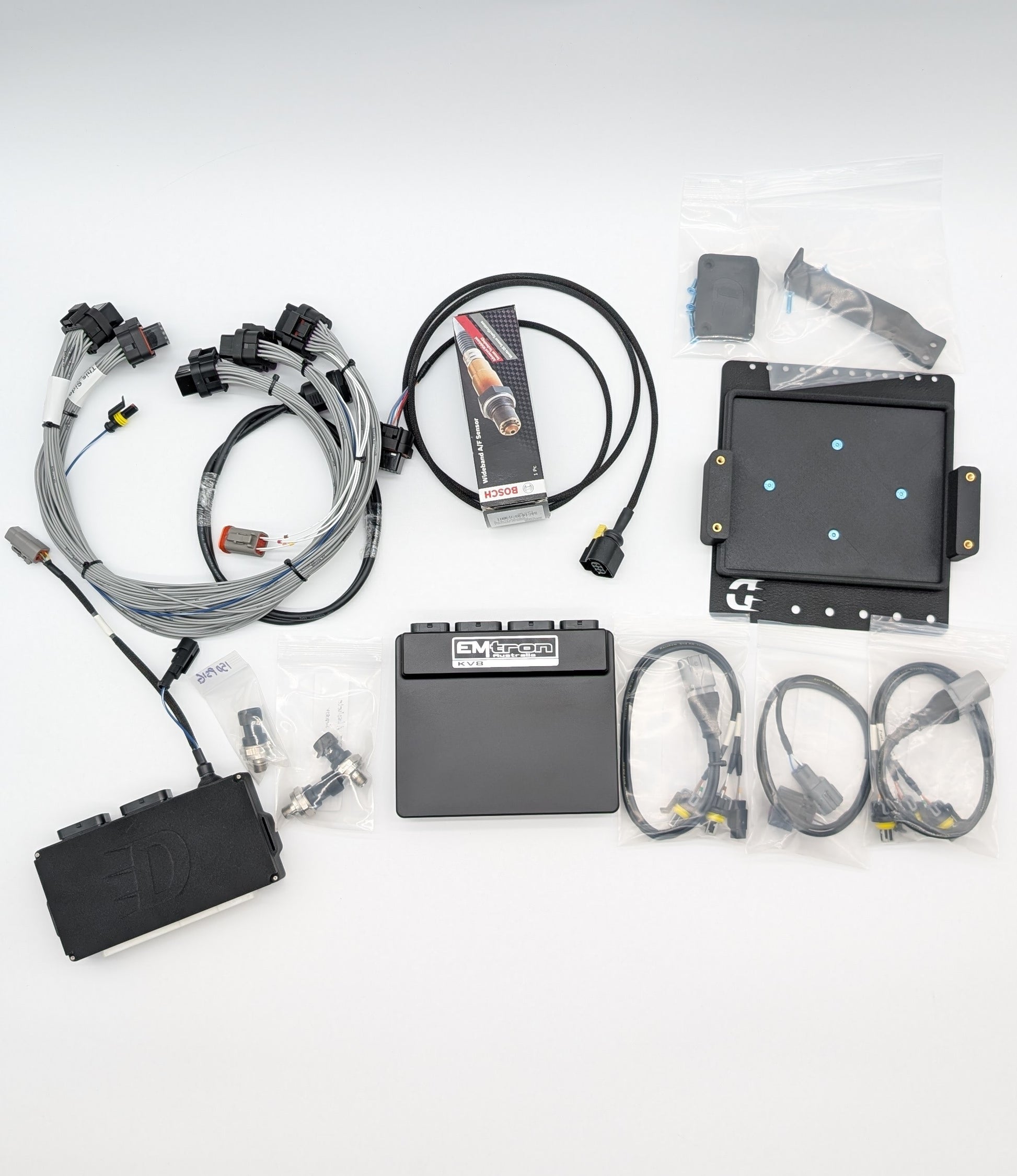

What's included:

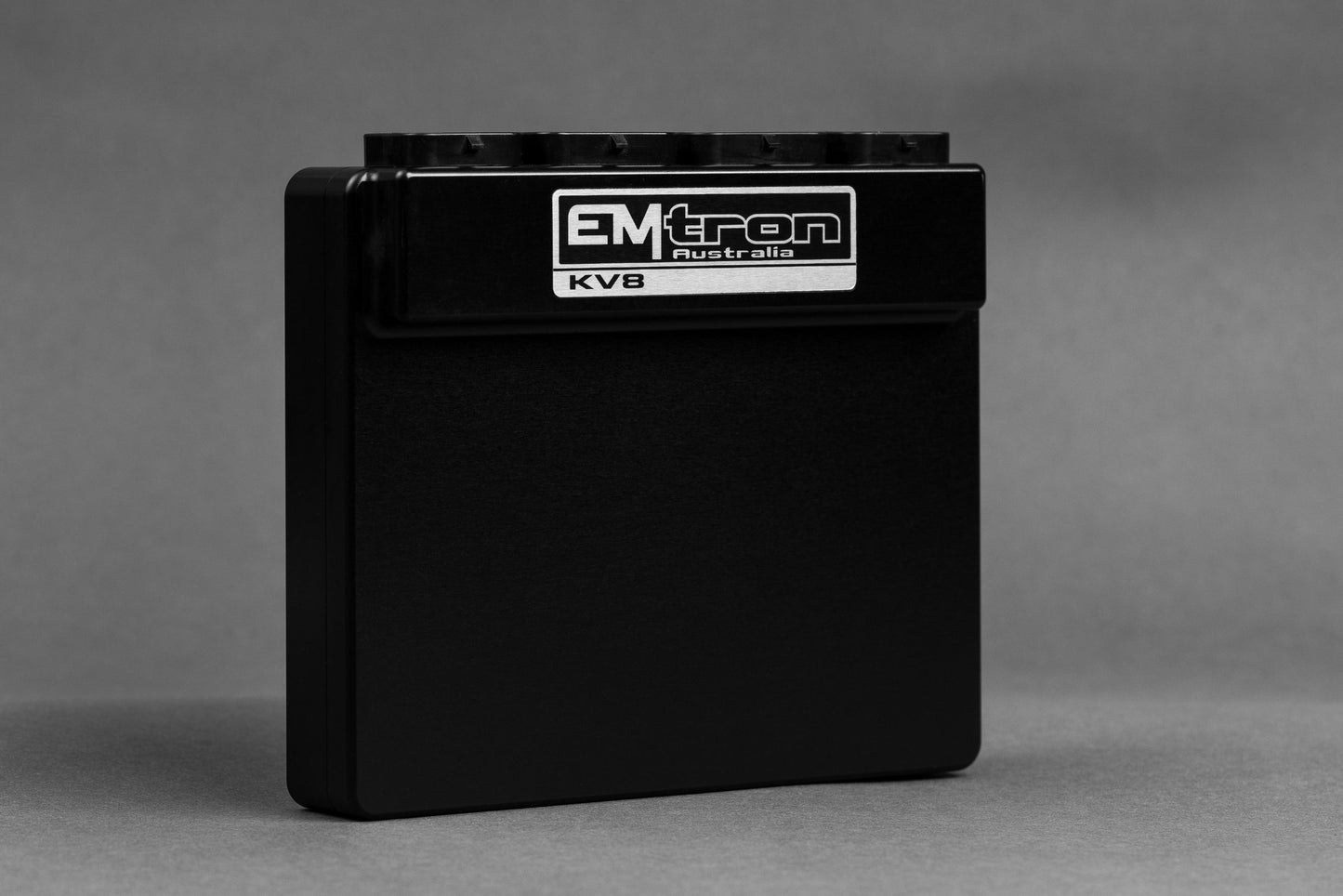

1. EMtron KV8 ECU
2. Dialed In Motorsports Plug and Play ECU Harness Adapter
3. Dialed In Motorsports TGV to Oil Pressure Adapter Harness
4. Motorsports Oil Pressure Sensor 150PSI
5. Dialed In Motorsports TGV to Triple Sensor Adapter Harness
6. SRS 1/8" NPT DTM2 Fast-Response IAT Sensor
7. Motorsports Fuel Pressure Sensor 150PSI
8. Motorsports Boost Pressure Sensor (EMtron TMF MAP) 6.89BAR
9. Dialed In Motorsports MAF to Oil Temperature Adapter Harness
10. SRS 1/8" NPT Oil Temperature Sensor DTM2
11. Dialed In Motorsports Rear O2 to Flex Fuel Sensor Adapter
12. Wideband O2 Kit, including LSU4.9 Sensor
13. Full ECU Provisioning Documentation Sheet (pinouts are not a secret!)
14. ECU Mounting Bracket (under dash)

Optional Add-ons:

• CANBus Expansion Harness, pre-terminated DTM-4Pin Connector
• CANChecked CANBus Input Expansion

• CANChecked MFD15/MFD28/MFD32
