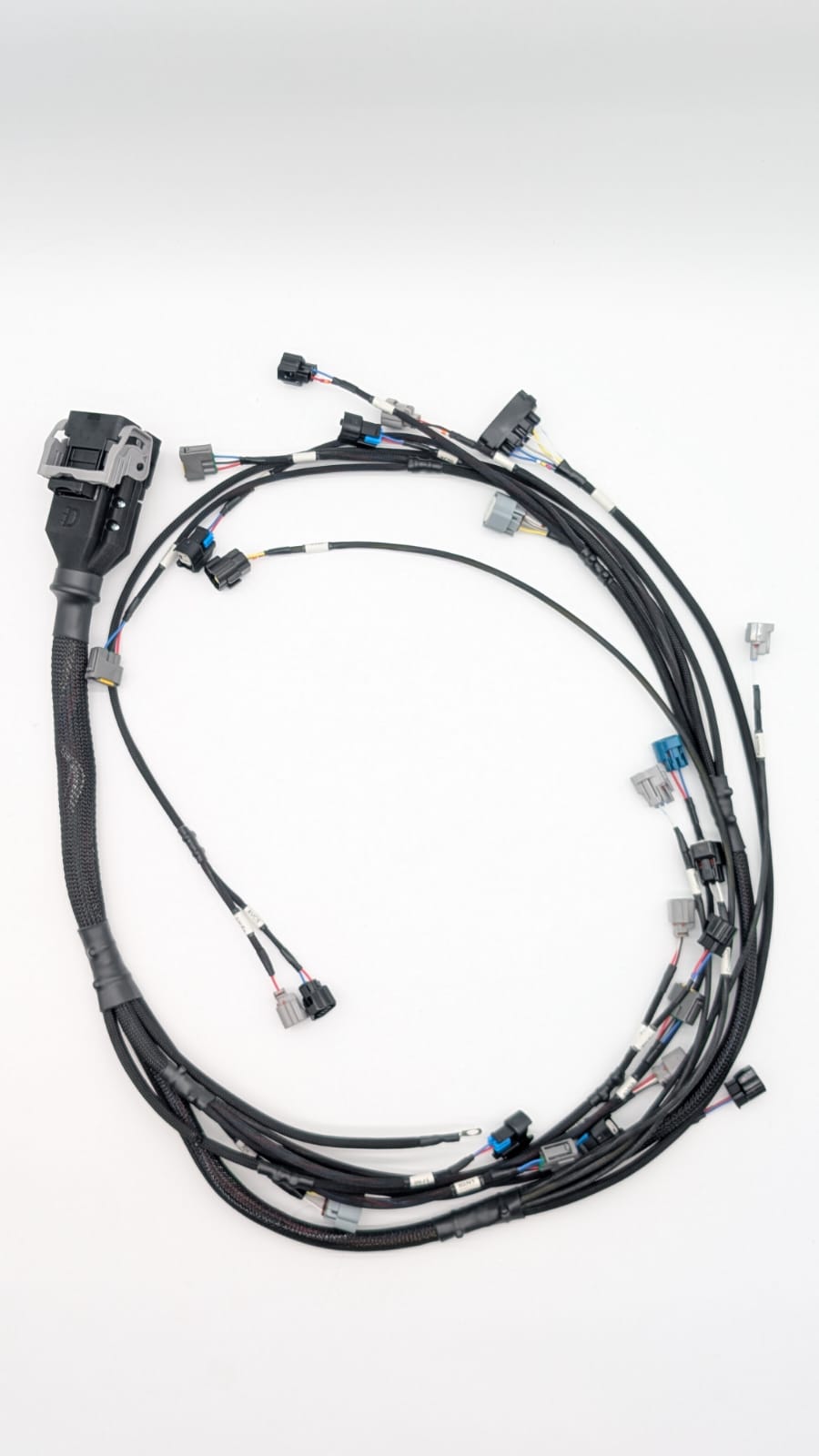

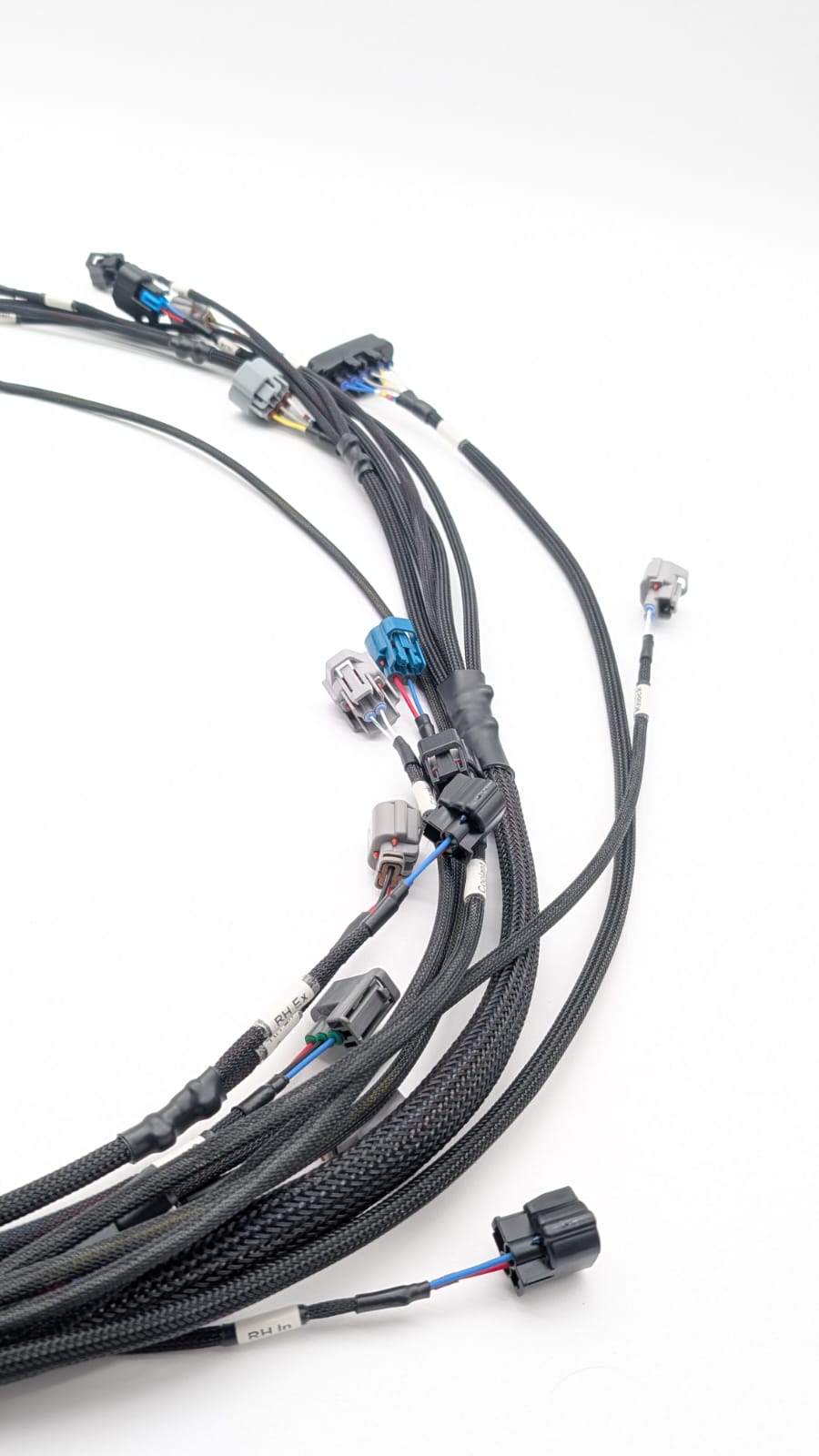

Level 1 (Street) 08+ Subaru STI PnP Intake Manifold Harness

STANDARD LEAD TIME OF 2 WEEKS AFTER ORDERING.

Introducing our new Level 1 (Street) spec 08+ STI PnP Intake Manifold Harness. This harness replaces the factory harness and drastically improves aesthetics in the engine bay. It is also lighter and smaller than the factory harness. It is built using high-quality heat resistant braided loom, TXL-wire and fire sleeve where necessary. This harness is aimed at those going to a Standalone ECU who also want to upgrade things on the engine-side for a cleaner look and fresh wiring, or tuned stock ECU cars that want a cleaner looking harness. Please note that due to the nature of materials used for construction, this harness is not rated as fuel/oil/coolant-proof. Its durability is similar to OEM. If you need maximum durability, heat or fluid resistance and performance, please look at our Level 5 (Race) 08+ Subaru STI PnP Intake Manifold Harness.

The following connectors are used by default:

• OEM DBW Throttle Connector
• EV14 Injectors
• OEM Coils
• OEM AVCS Cam Sensors
• OEM AVCS Solenoids
• Delphi GT150 MAP Sensor (OEM MAP Available)
• Coolant Temp Sensor: OEM CLT (GM or DTM Optional)
• OEM Crankshaft Position Sensor
• Knock Sensor: Bosch Wideband (OEM Available)
• TGV Connectors: Factory 5-pin, (DTM available)

Options:

• "Denso" Style (FIC2150, ID2000) Injector Connectors available.
• OEM MAP Sensor Connector available, please inquire at time of ordering.
• OEM Coolant Temp Sensor Connector available if using stock ECU.
• OEM Knock Sensor Connector available if using stock ECU.

When paired with our PNP ECU Adapter, the harness can also have custom sensor configurations built into it, such as:

• Up to 8 Injectors
• Up to 10 Pressure/Position/Temp additional sensors
• Turbo Shaft Speed Sensor

and more!

With our custom PnP Adapter, even engine swaps can be supported into the 08+ Chassis Subarus. If interested in this, shoot us an e-mail. sales@dialedinmotorsports.net
