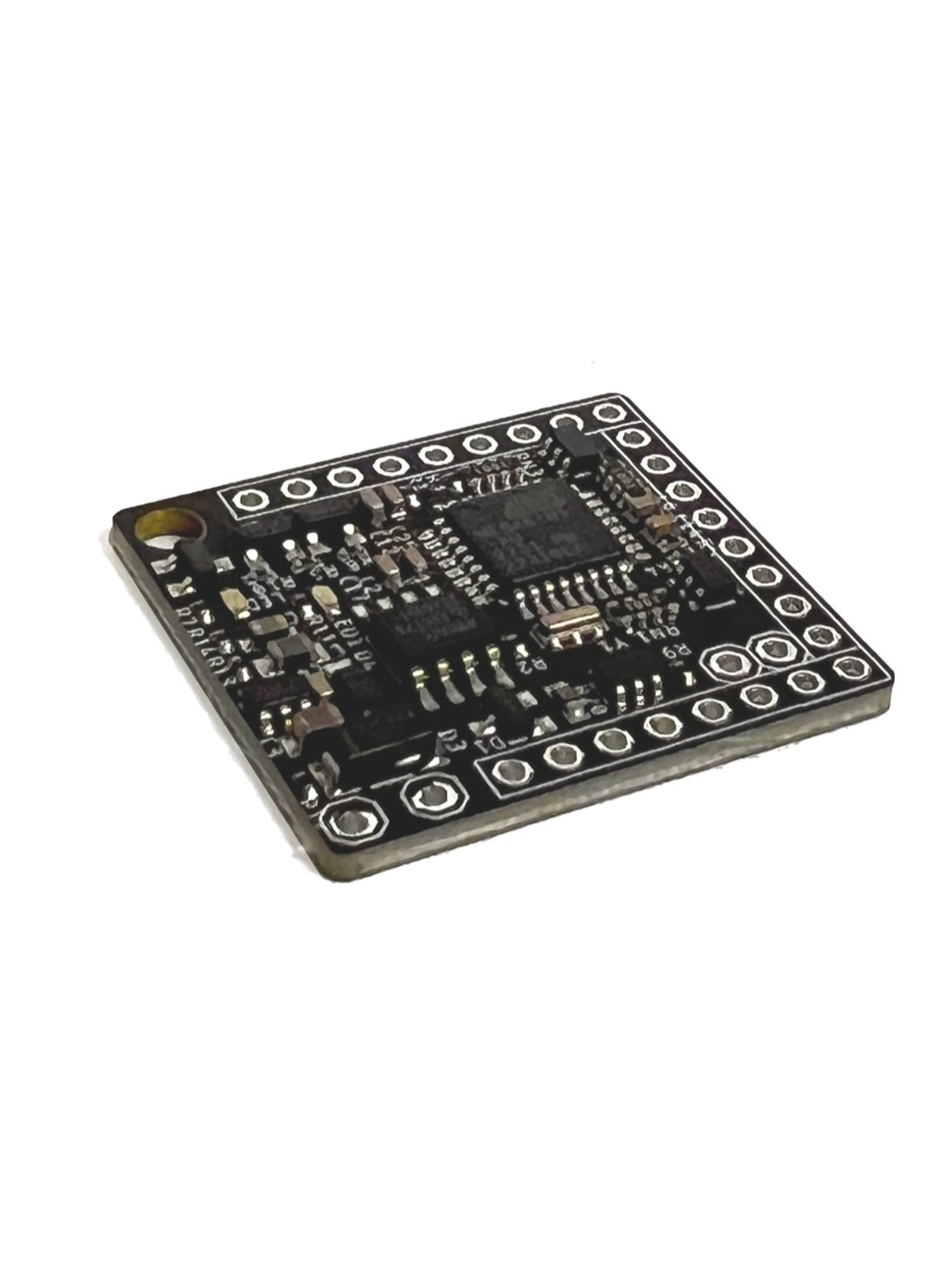

CAN Switch Board by CANchecked

This little unit is at the heart of the MCE18 found here

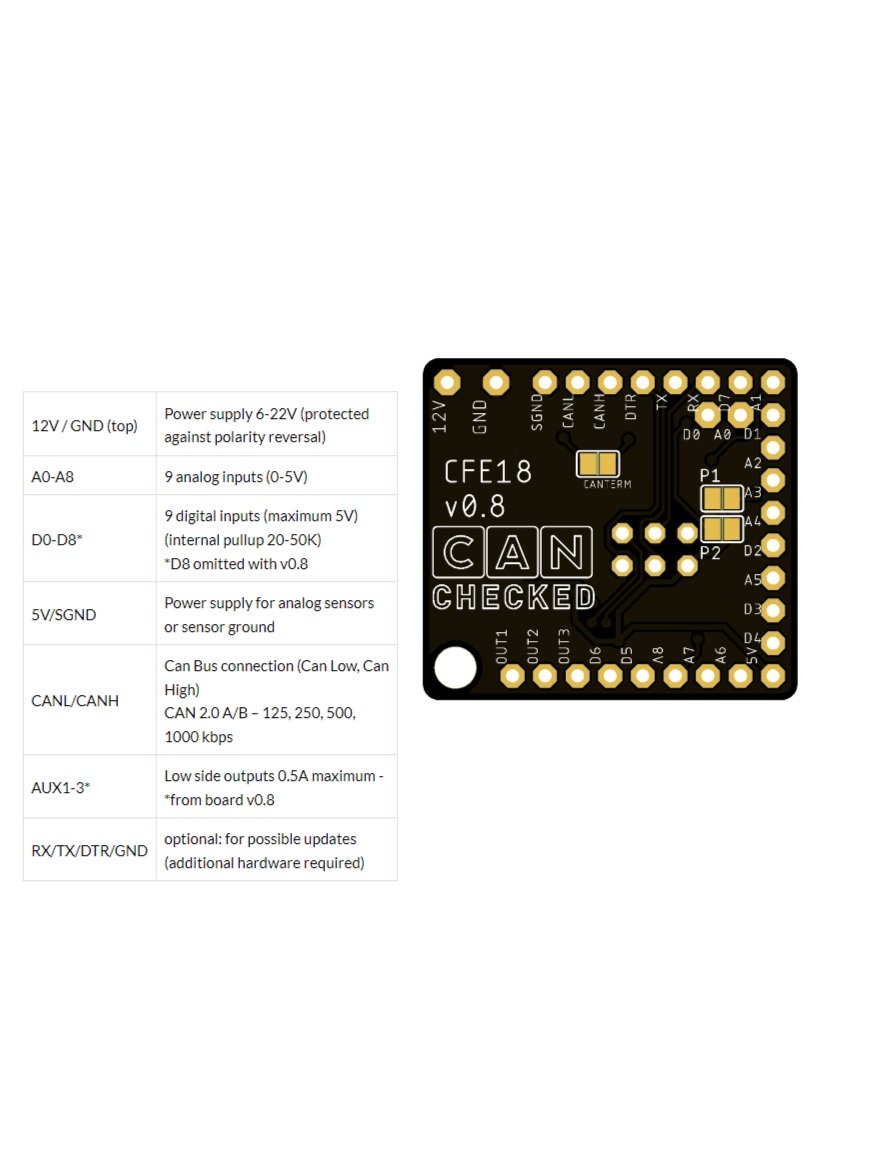

It has:
(9) 10-bit analog sensor inputs

(8) SWITCHED digital inputs

(3) SWITCHED outputs (0.5A MAX)

12V, GND inputs

CANH/CANL outputs

5V/0V(sensor power and ground) outputs

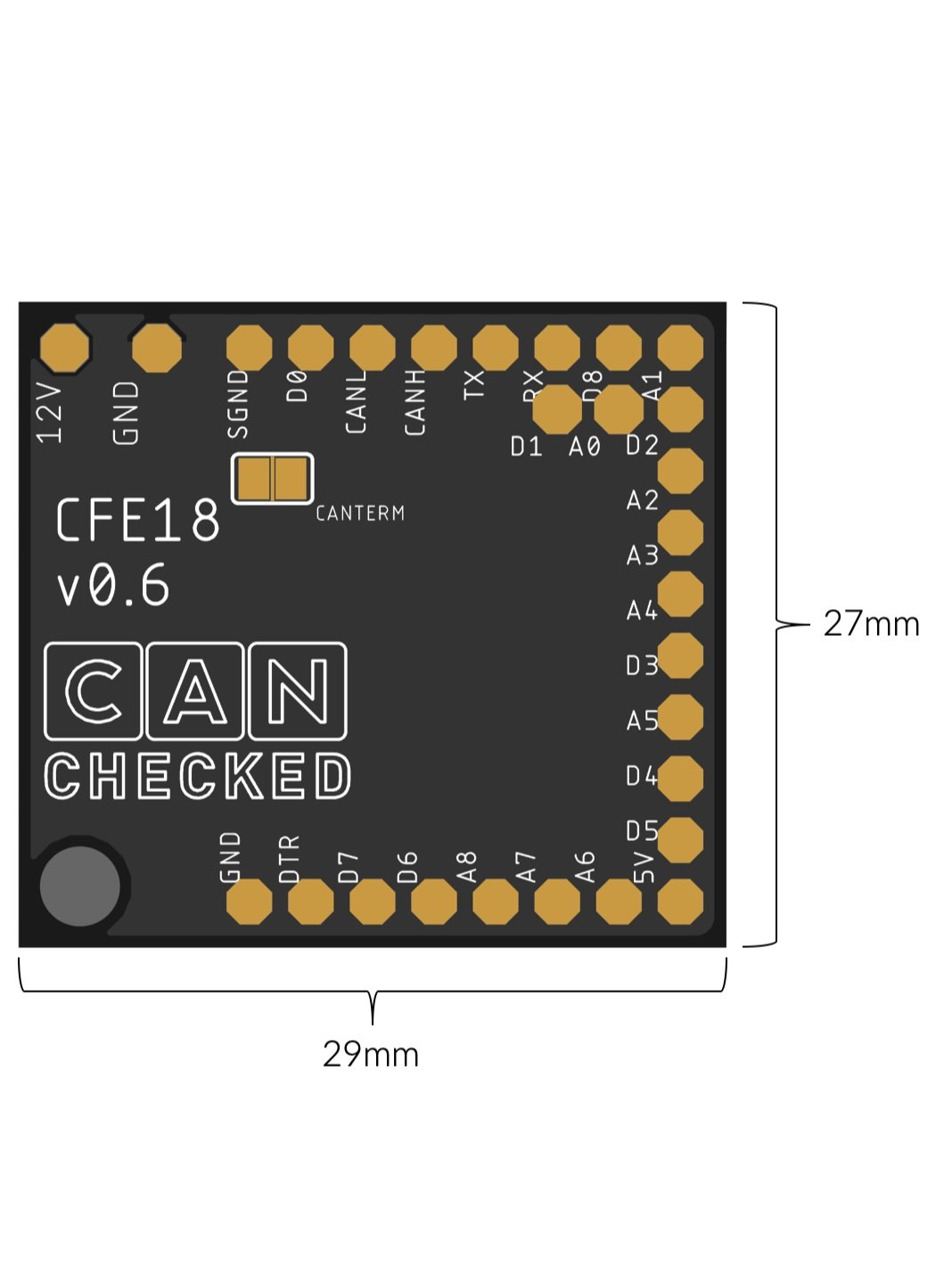

ALL in a package that is less than 1” x 1” in dimensions: it fits virtually anywhere!

It’s a great way to simplify wiring on things like:

• Switch Panels

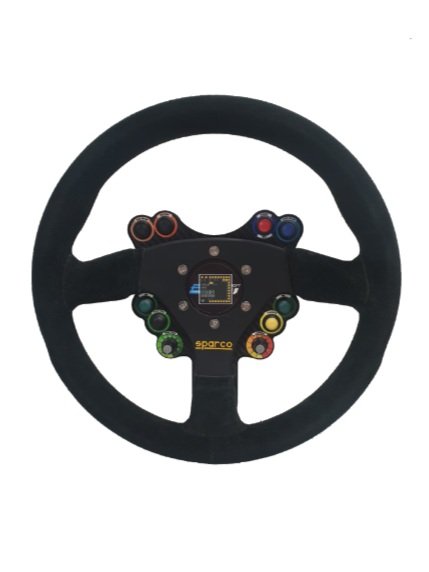

• Steering Wheel Panels

• Sensor Input Expansion

• and more

More information can be found here: CFE18
