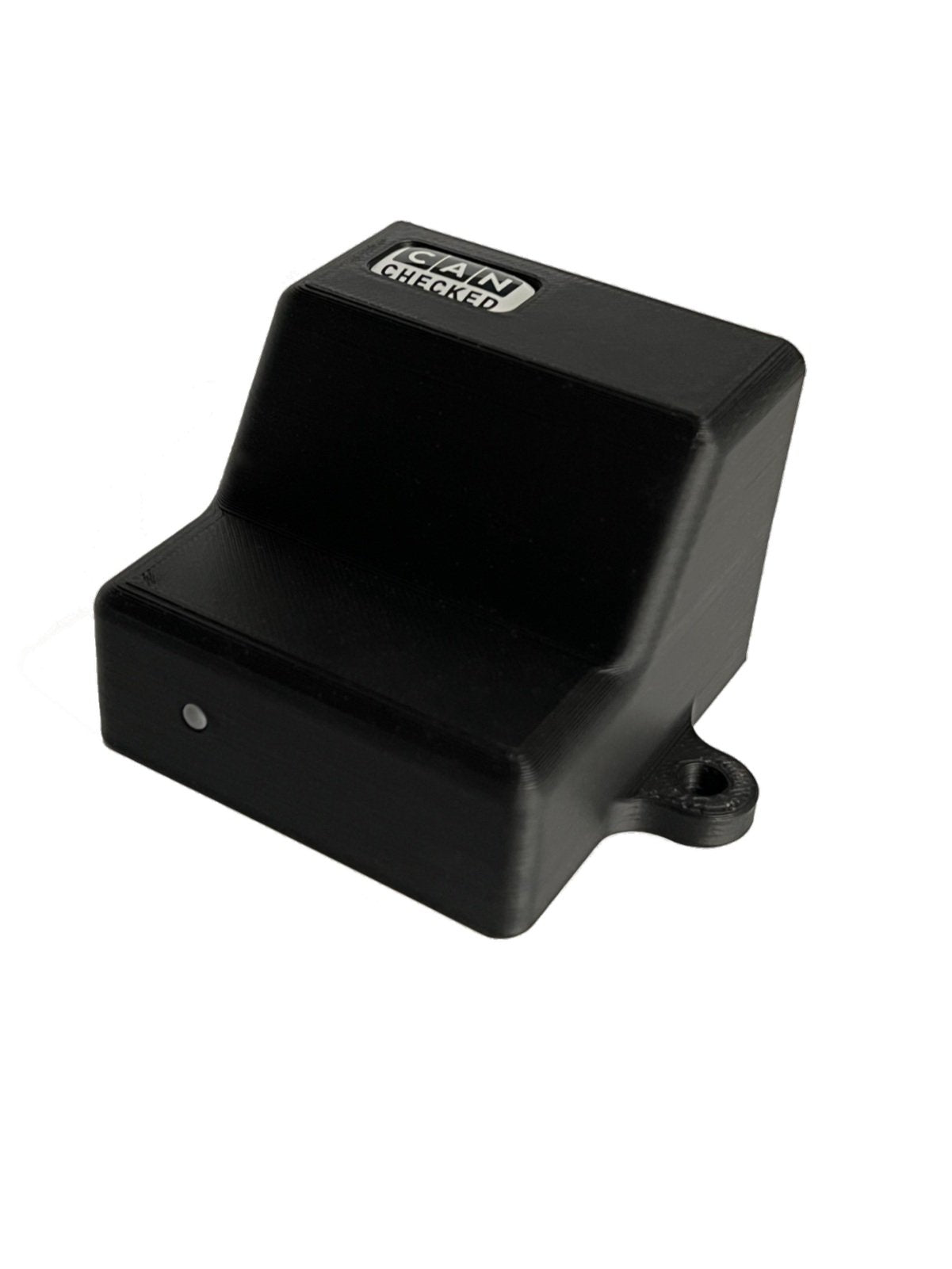

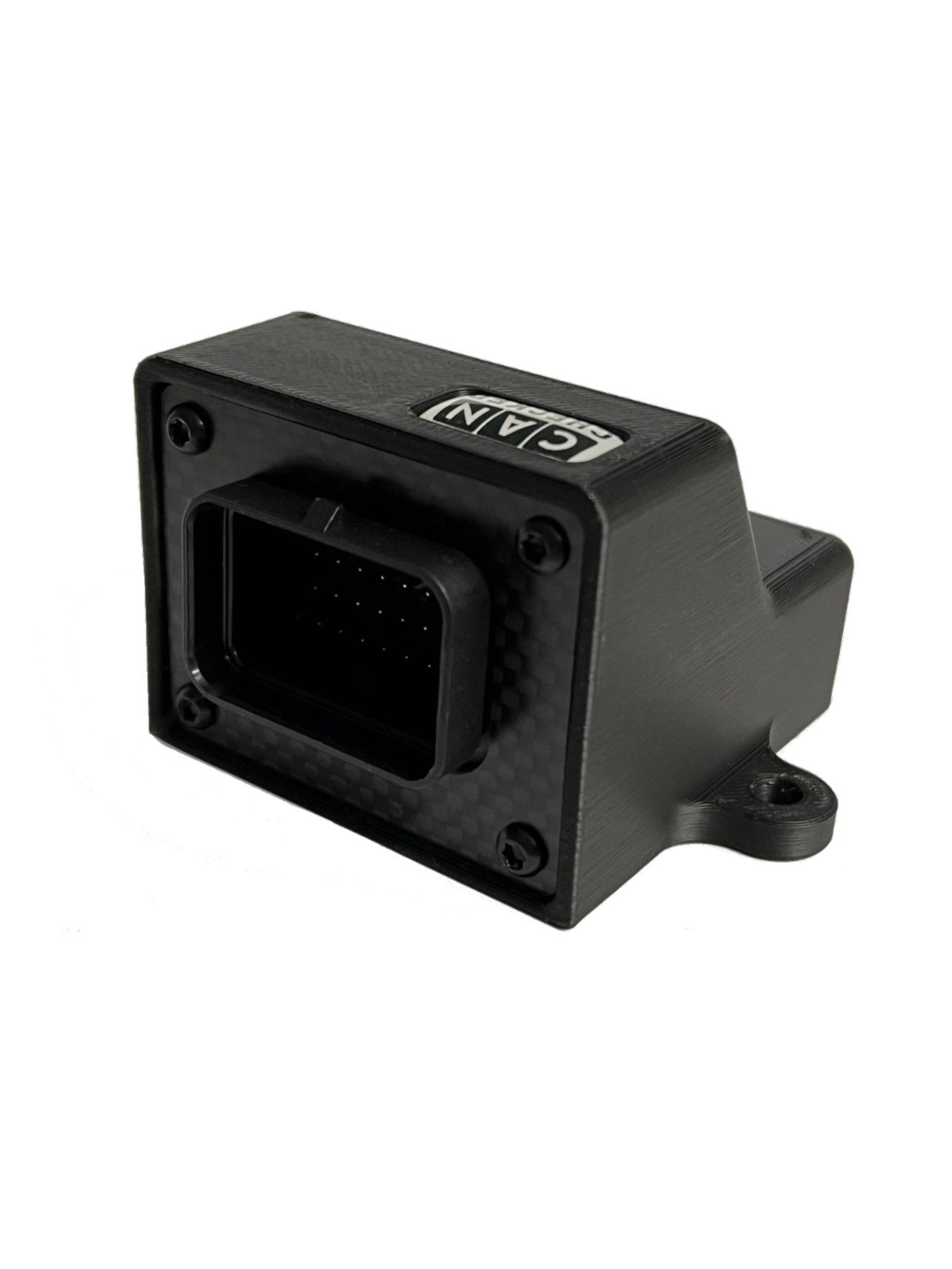

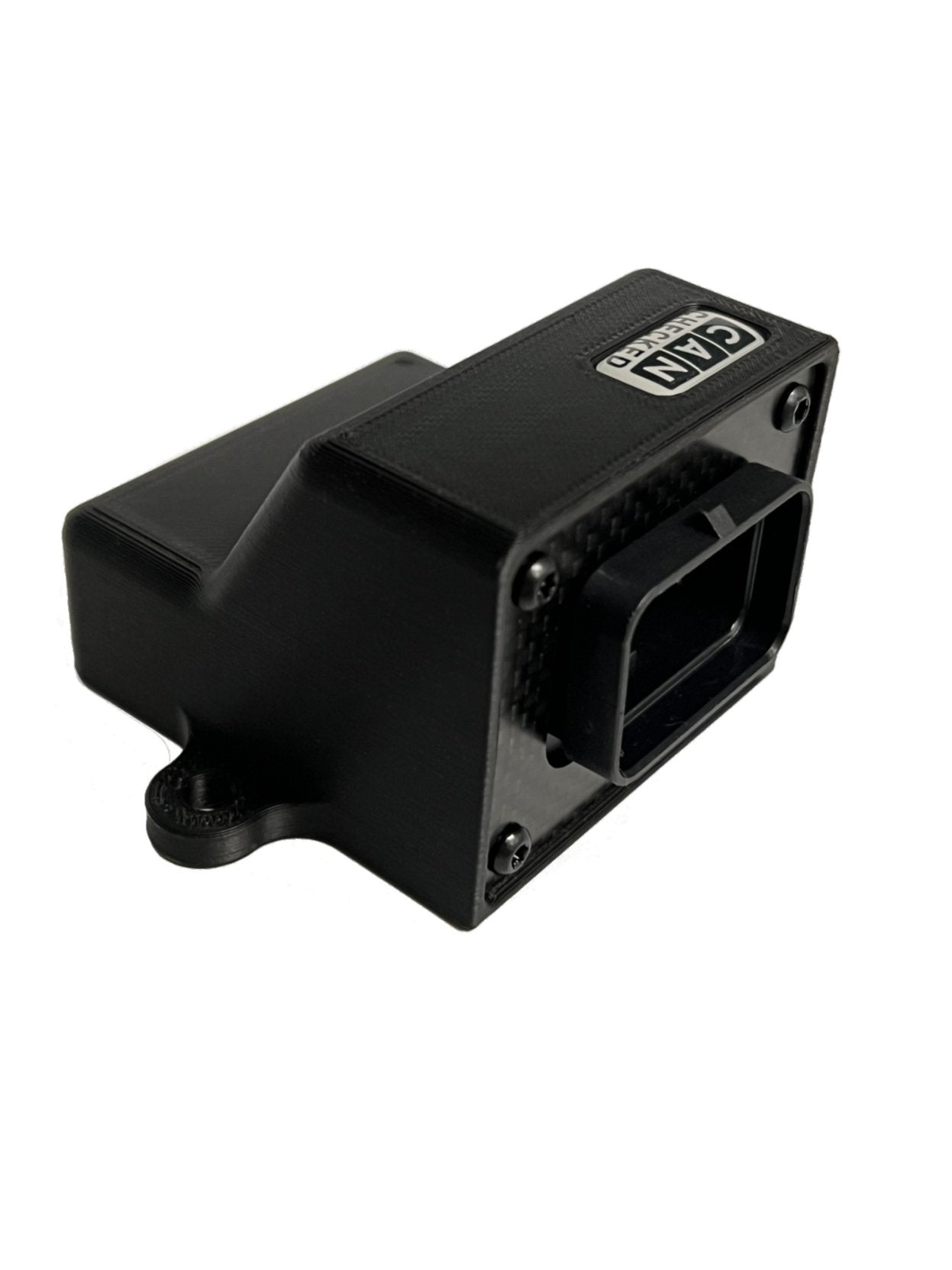

This small but powerful module by CANchecked is built around the very tiny but powerful CFE18 CAN-based Switchboard. See that here: CFE18 Switchboard

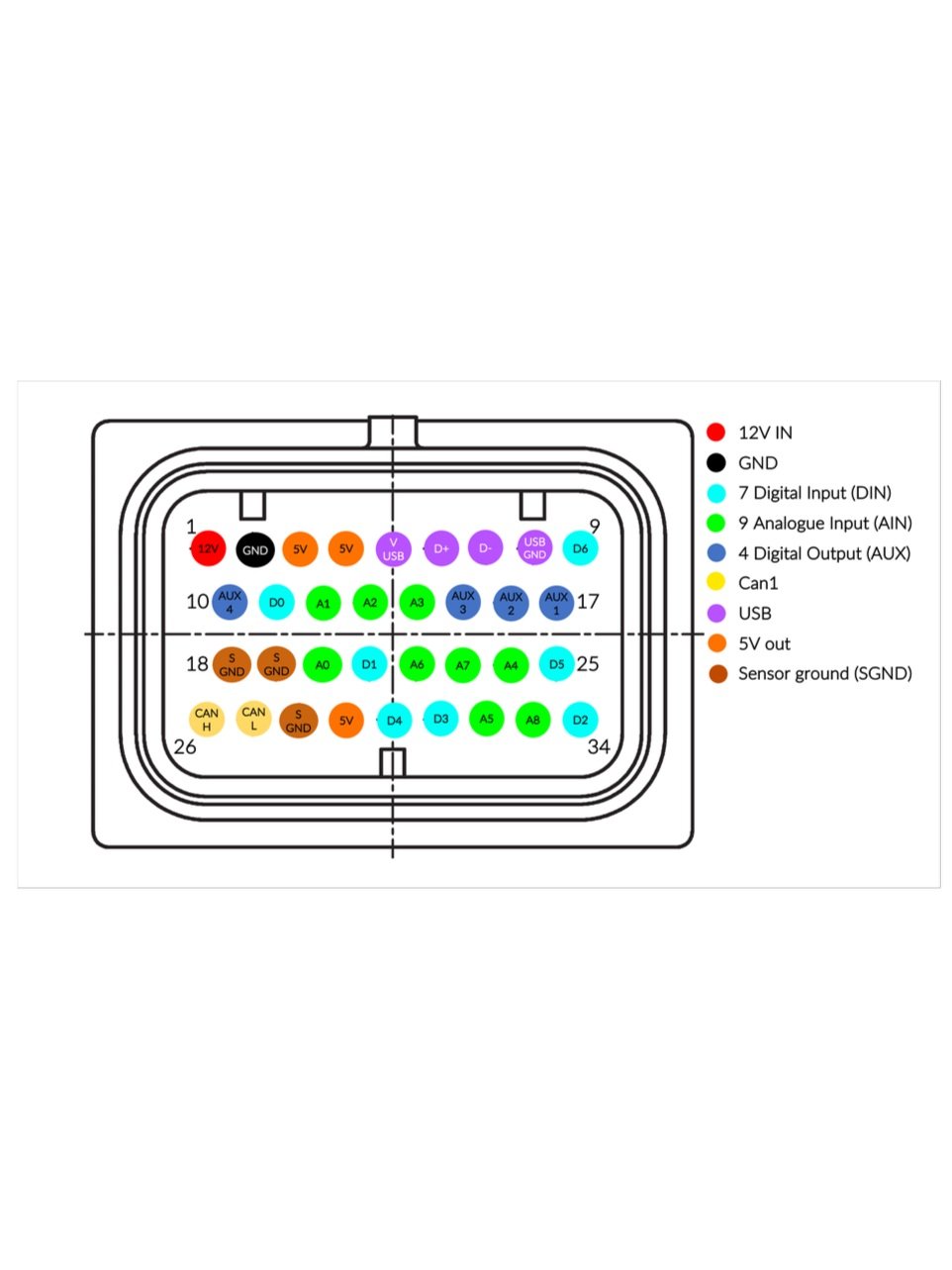

It has: (9) 10bit Analog Inputs (0-1024 ADC) which provide an accuracy of ~4.88mV (high-degree of accuracy standard on most mid-range and high-end ECUs)
(8) SWITCHED Digital Inputs
(3) SWITCHED Outputs (0.5A MAX, can be used to trigger relays, LEDs, or any low-current device)
Single 12V IN (switched), GND IN (to battery or chassis), and CAN H / CAN L connections.
This device is compatible with every standalone ECU out there. Your tuner will be able to configure it to your needs!
