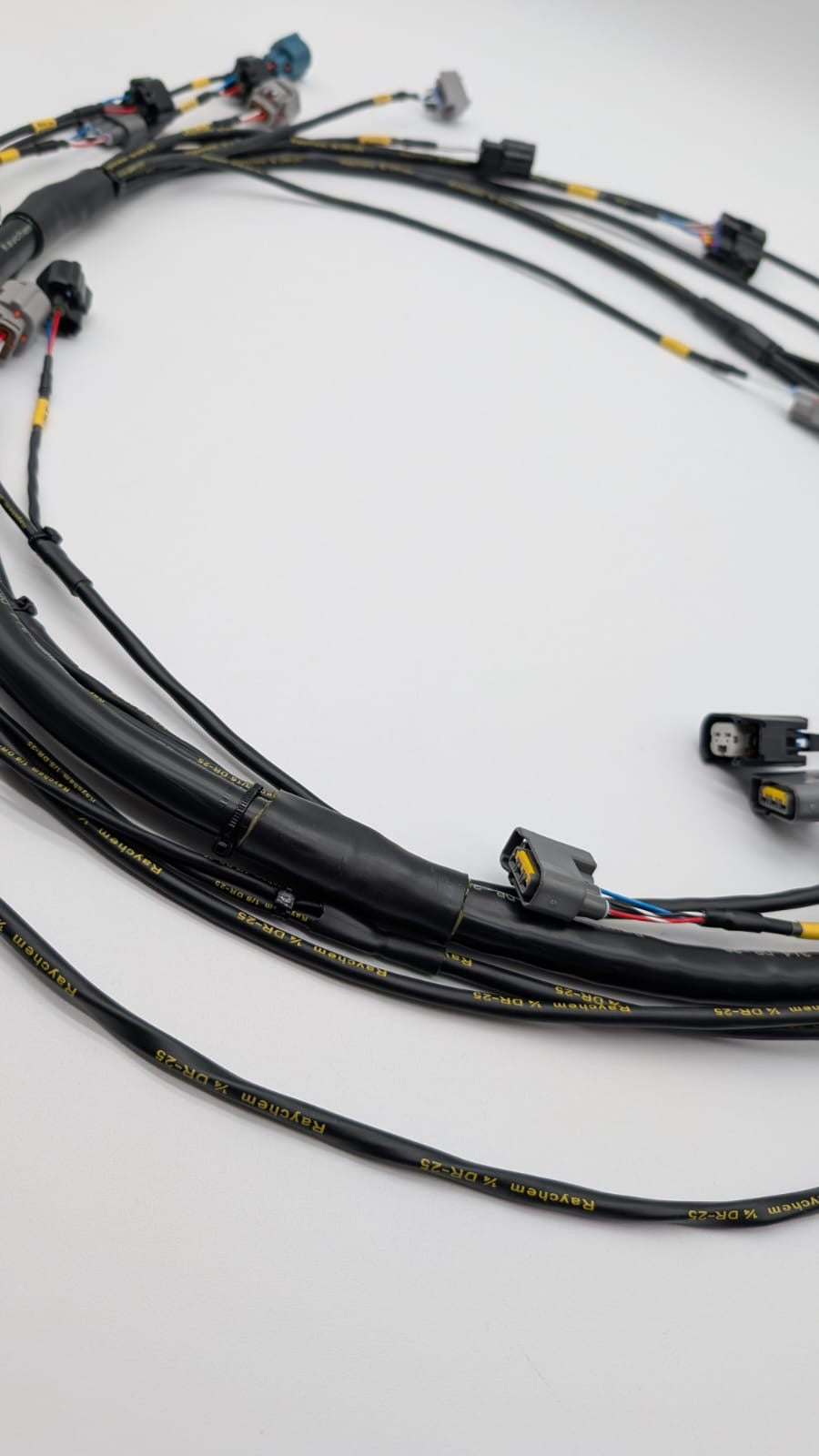

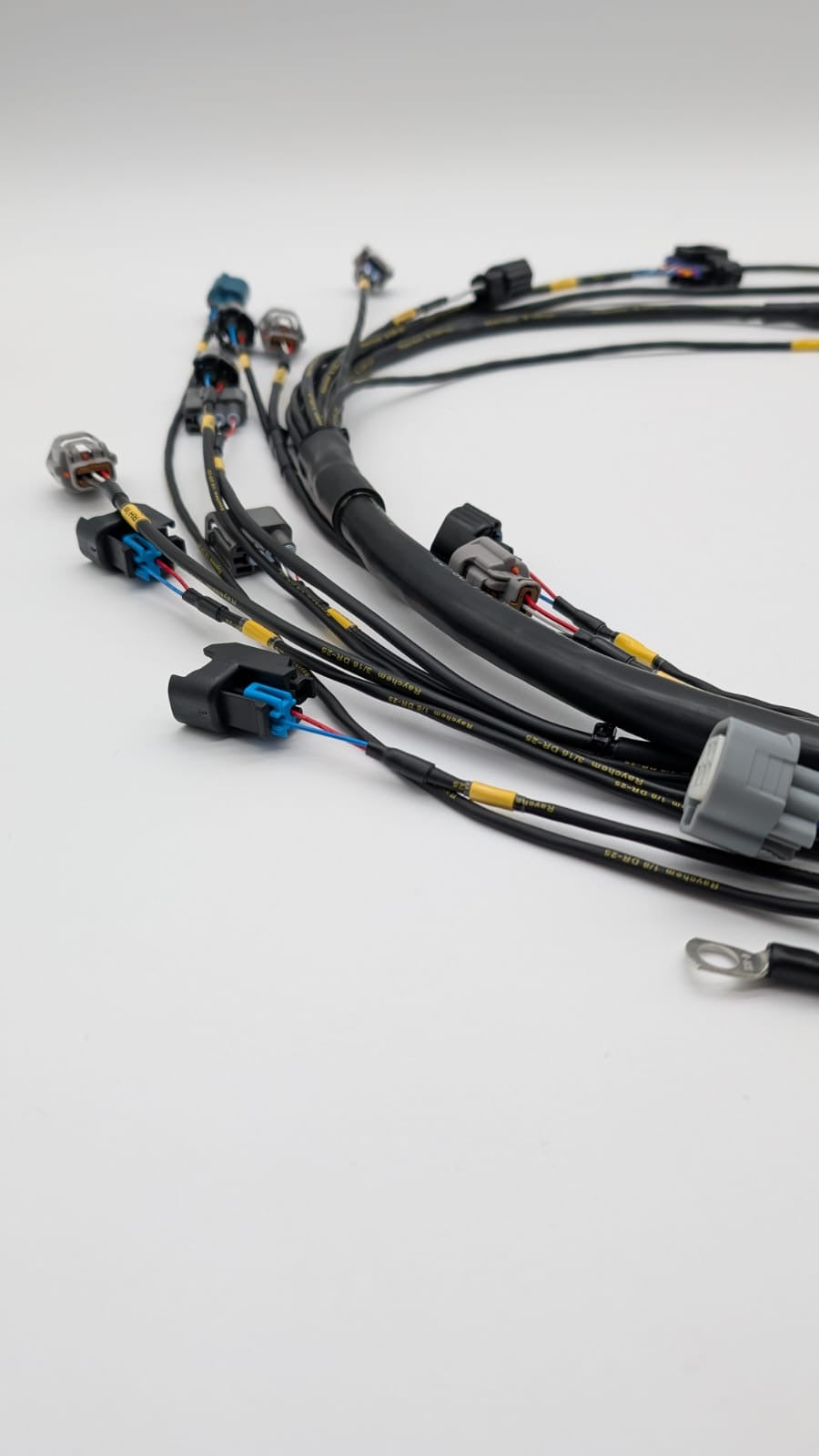

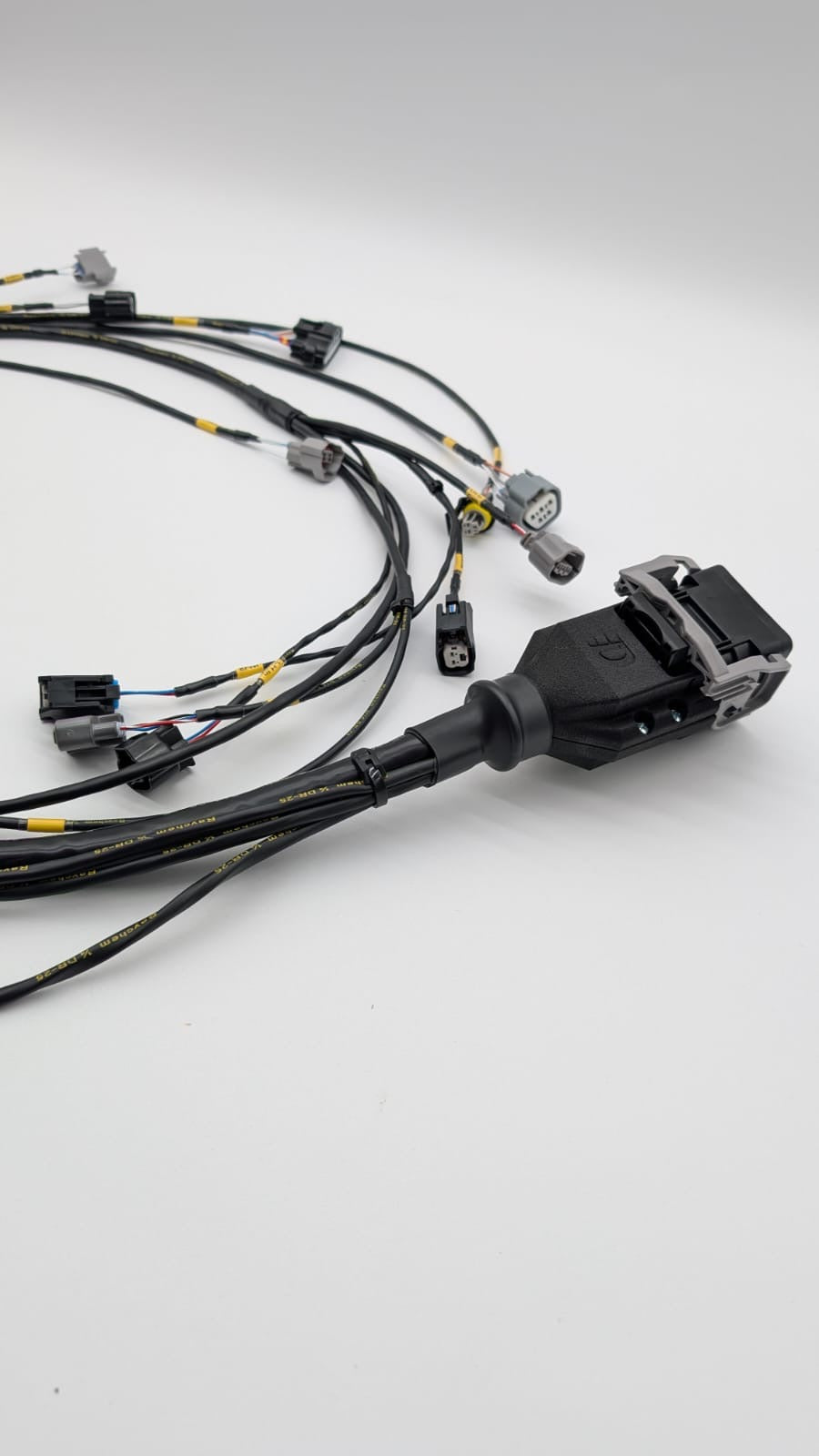

Level 5 (Race) 08+ Subaru STI PnP Intake Manifold Harness

Level 5 (Race) 08+ Subaru STI PnP Intake Manifold Harness

$2,399.00 USD
$2,399.00 USD
Sale Sold out

STANDARD LEAD TIME OF 4 WEEKS AFTER ORDERING.

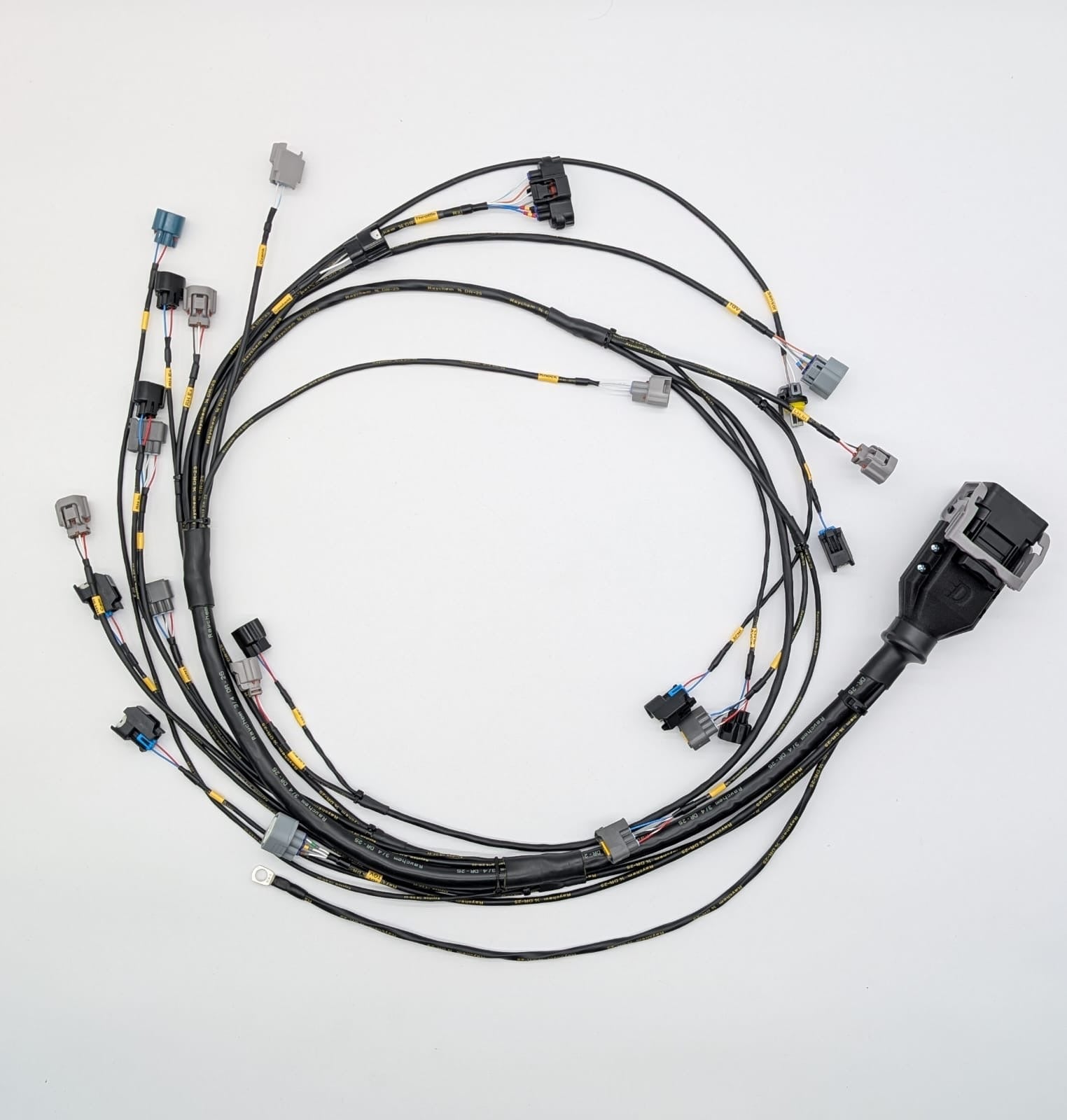

Introducing our Level 5 (Race) spec 08+ STI PnP Intake Manifold Harness. This harness replaces the factory harness and drastically improves aesthetics in the engine bay. It is also lighter and smaller than the factory harness. Built with the highest-grade motorsport materials available, this harness is aimed at those looking for a simpler solution than making a fully custom wiring harness, while still meeting the rigors of a track car engine bay. This harness is aimed at those going to a Standalone ECU who also want to upgrade things on the engine-side for a cleaner look and fresh wiring. This harness is rated to withstand high heat, oil, coolant, gasoline, ethanol, etc. Routing of this harness is similar to OEM, but with the smaller overall bundle size it will tuck neater around the engine.

The following connectors/sensors are used:

  • OEM DBW Throttle Connector
  • 4x Injectors (ID EV14 Standard)
    • FIC2150 Denso Style available, please inquire at time of ordering.
  • 4x OEM Coils
  • 4x OEM AVCS Cam Sensors
  • 4x OEM AVCS Solenoids
  • MAP Sensor: Delphi GT150 "AEM Style"
    • OEM MAP Sensor Connector available, please inquire at time of ordering.
  • Coolant Temp Sensor: GM M12x1.5, sensor included.
    • OEM available if using stock ECU, please inquire at time of ordering.
  • OEM Crankshaft Position Sensor
  • Knock Sensor: Bosch Wideband
    • OEM available if using stock ECU, please inquire at time of ordering.
  • TGV Connectors: Terminated to factory TGV.
    • 1x, 2x and 3x Sensor TGV Harnesses available, please inquire at time of ordering.

When paired with our PNP ECU Adapter, the harness can also have custom sensor configurations built into it, such as:

  • Up to 8 Injectors
  • Up to 10 Pressure/Position/Temp additional sensors
  • Turbo Shaft Speed Sensor

and more!

With our custom PnP Adapter, even engine swaps can be supported into the 08+ Chassis Subarus. If interested in this, shoot us an e-mail. sales@dialedinmotorsports.net
